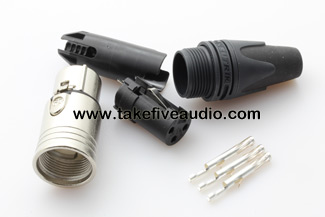

This connector allows you to make all the connections using a crimp tool! We stock the BXX-14 bushing which allows these connectors to be used with cables up to 10mm in diameter, we also stock the color coding rings in black and six additional colours. These are an excellent connector for the Mogami 2534 and 2549 cables!
• 3 pin XX Series with crimp contacts
• Accommodates wire size AWG 24 - 22 or 0.22 – 0.34 mm2
• Utilize standard B-type crimp tool (acc. IEC 60352-2)
• Absolute leadfree and solderless connection:
- RoHs compliance
- health and eco-friendly
• Fast and easy assembly
• Gas-tight connection offers a constant contact resistance
• Ideal solution for field and on-site termination
Cable O.D. range 3.5 - 8.0 mm NOTE: This can be increased to 10mm with the optional BXX-14 backshell.

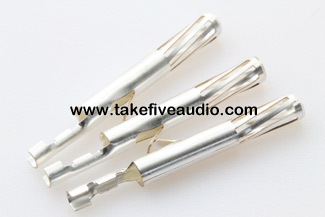

Contacts - female 3 pole: Bronze (CuSn8)
Contact surface Silver Plated 2 μm Ag
Insert Polyamide PA 6.6 30% GR
Rated current per contact @ 35°C 3 pole: 16 A
Capacitance between contacts 3 pole: ≤ 4 pF

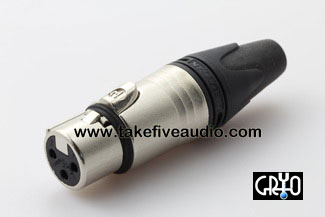

This part has been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
